Topic: For G 2 residential building, column size 9"*15",16mm 4rod,12mm 2rod used.. hori

For G 2 residential building, column size 9"*15",16mm 4rod,12mm 2rod used.. horizontal distance between column is 17'.vertical distance is 11'... Is this ok? plinth beam 15"*9",16mm 4rod,12mm 2rod Lintel 4"inch 10mm 4rod used.Roof beam 12"*9", 12mm 4rods used..
Thu Aug 22, 2019Post  #1
Sathya
Sathya

Join date: Aug 2019
Kindly refer my attachment,
For G+2 residential building, M15 grade used ,for roof M20grade used

Plinth beam size for building area 9''*15'', 16mm 4rod,12mm 2rod( inbetween C1)

Plinth beam size for stair & portico area 9''*15'', 12mm 6rod( inbetween C2)


Pillar size C1- 9''*15", 16mm 4rods, 12mm 2rod,8mm rings
C2 9"*12", 12mm 6rods,8mm rings
Horizontal Distance between column is 17' & vertical distance is 11'.

Lintel beam 4.5" inch 10mm 4rod

Roof beam  for building area
9"*12",12mm 4rod ( inbetween C1)

Roof beam for stair & portico
9"*15", 16mm 6 rods (inbetween C2)

Roof slab 6inch M20GRADE

My question is
1) is this correct for G+2? Ground floor is already done...now I wish to go for first and second floor?

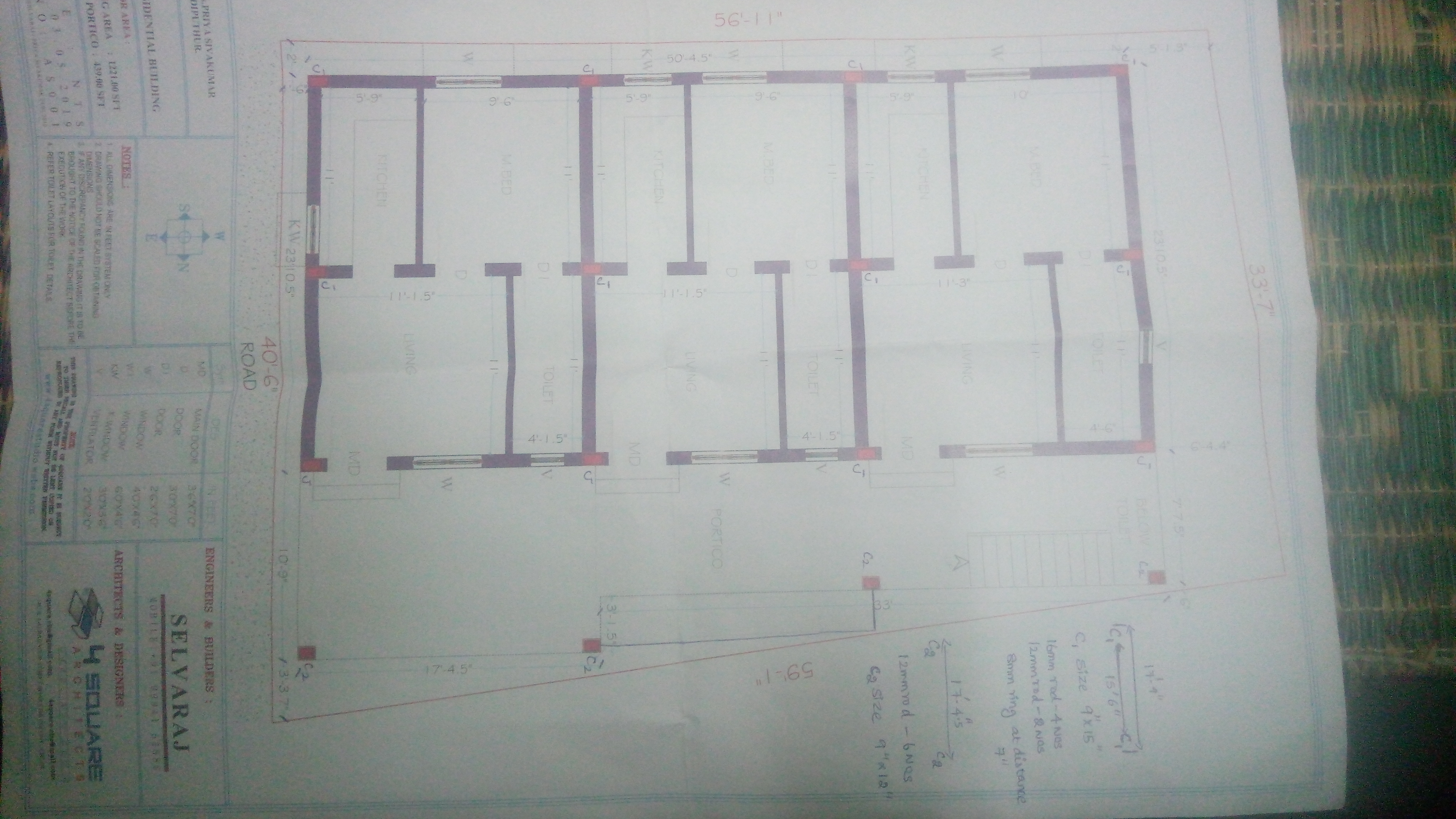

Attachments: 1566523533754-1334146045.jpg Thu Aug 22, 2019,&n
