Topic: foundation drawing required

Dear sir,

I have old building with brick foundation.

now i want to extend my building .

but there is so shortage space.because boundary wall and old foundation are there.

so, i want some help for do this building.

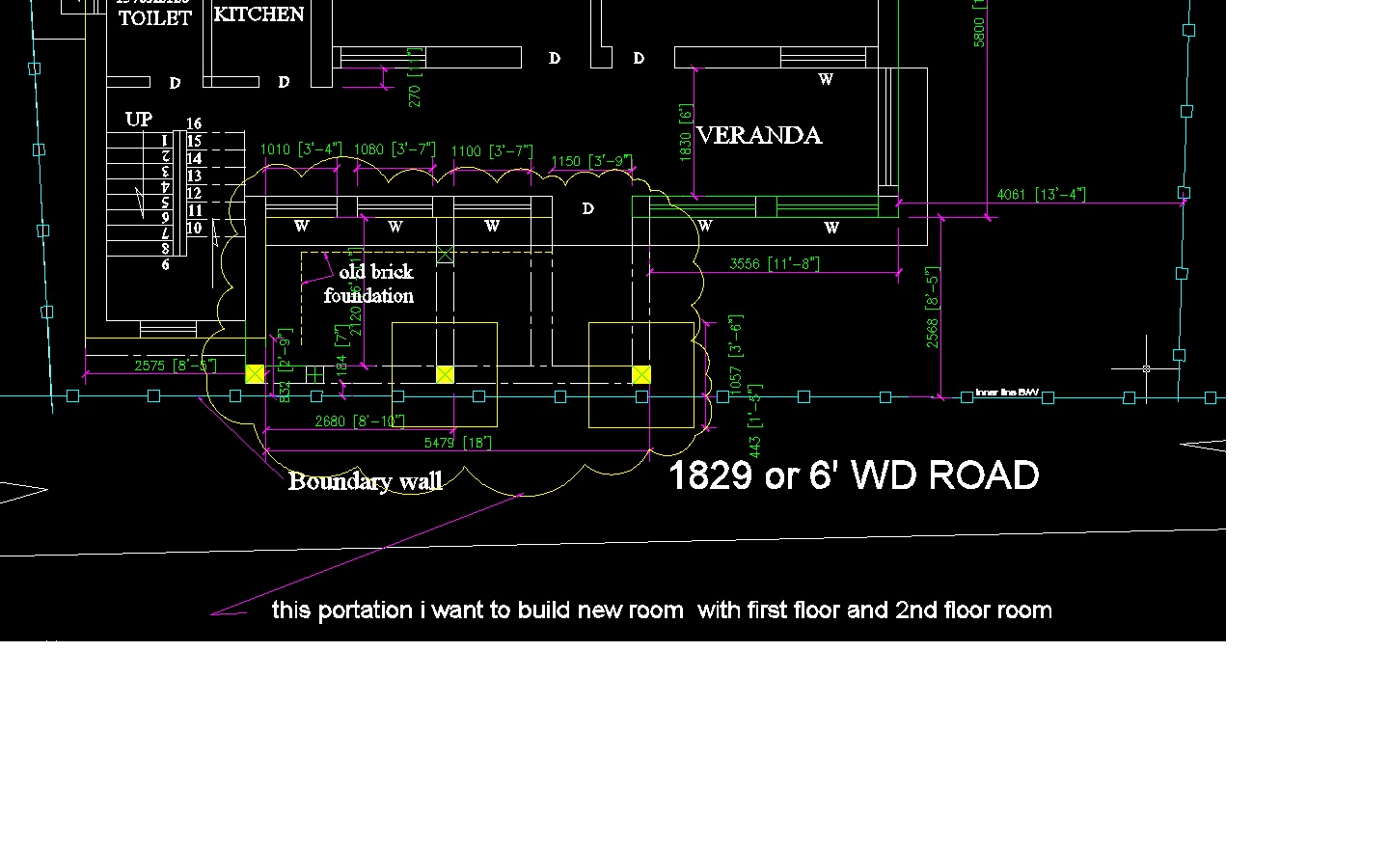

And the plan attached bellow.

Regards,

A.Das

Attachments: Plan.jpg on Mon Jul 25, 2016,&n

Mon Jul 25, 2016	Post #1
S L Gupta (Civil Engg) Join date: Mar 2008	Dear A D It is better to contact any architect or civil engineer of your city who better advice you after visiting the house site.

Mon Aug 08, 2016

Post #2

Join date: Jan 2016

Post subject: tie beam's effect or not in building.

thinks sir for previous reply.

now i have one quires?

i making a new extension with rcc column foundation attached with previous brick foundation house.

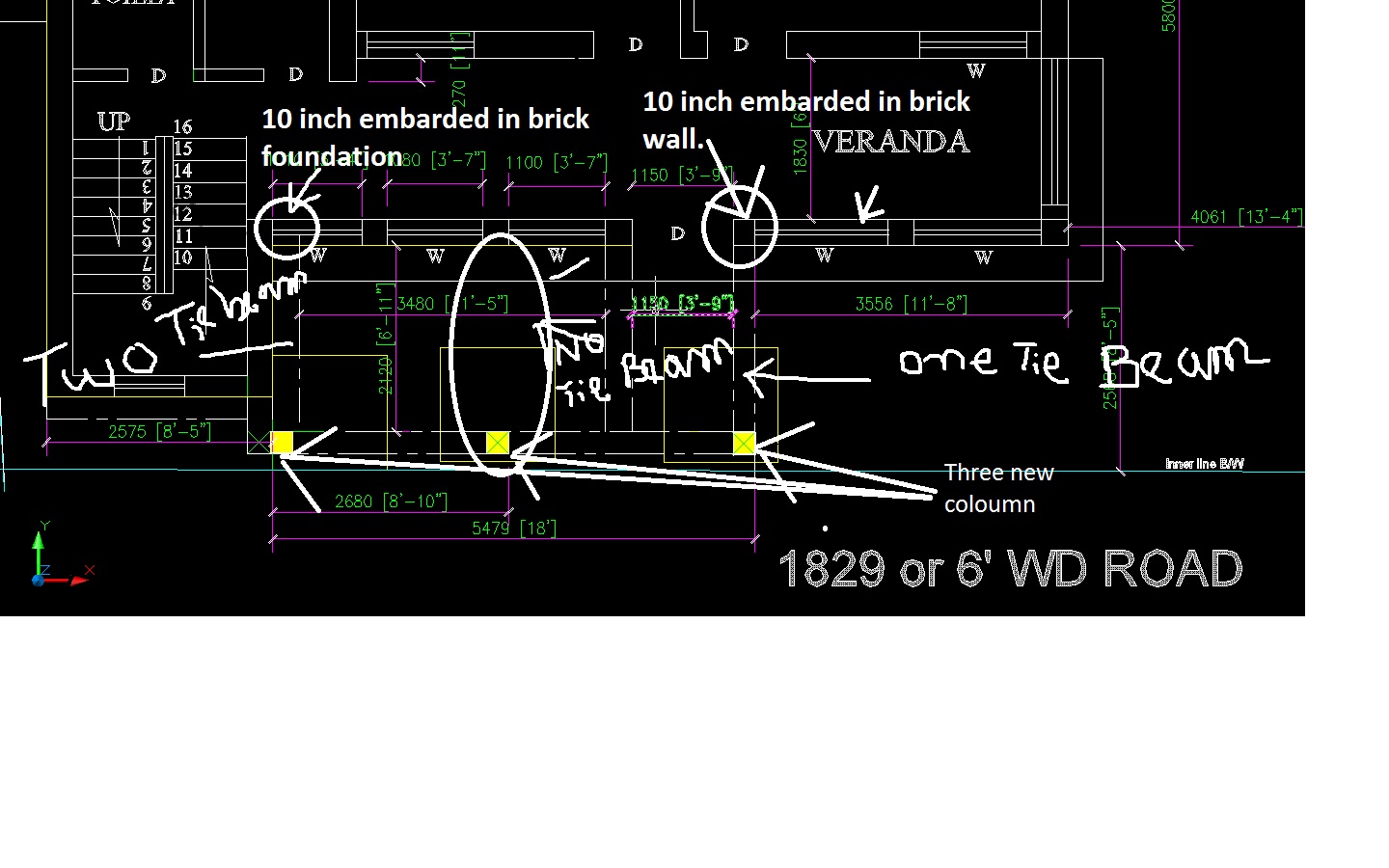

i have make three new column with rcc and tie beam push in brick foundation up 10".but 2 tie beam push in brick wall but one tie beam not there?is it effect the house if is no tie beam there?

pls see my photo if i clearly not explain,

thanks sir

Attachments: Untitled.jpg Mon Aug 08, 2016,&n

Wed Aug 10, 2016	Post #3
S L Gupta (Civil Engg) Join date: Mar 2008	Dear AD Do not worry for one wall in such a small building tie beam is not necessary.
