Foundation is the part of structure below plinth level up to the soil. It is in direct contact of soil and transmits load of super structure to soil. Generally it is below the ground level. If some part of foundation is above ground level, it is also covered with earth filling. This portion of structure is not in contact of air, light etc, or to say that it is the hidden part of the structure.

Depth of Foundation

Depth of foundation depends on following factors.
1. Availability of adequate bearing capacity
2. Depth of shrinkage and swelling in case of clayey soils, due to seasonal changes which may cause appreciable movements.
3. Depth of frost penetration in case of fine sand and silt.
4. Possibility of  excavation close by
5. Depth of ground water table
6. Practical minimum depth of foundation should not be less than 50 cm. to allow removal of top soil and variations in ground level.
7. Hence the best recommended depth of foundation is from 1.00 meter to 1.5 meter from original ground level.

Footing

Footing is a structure constructed in brick work, masonry or concrete under the base of a wall or column for distributing the load over a large area.

Width of Foundation/Footings

The width of footings should be laid according to structural design. For light loaded buildings such as houses, flats, school buildings etc having not more than two storeys, the width of foundation is given below.
1. The width of footing should not be less than 75 cm for one brick thick wall.
2. The width of footing should not be less than 1 meter for one and half brick wall.

Different Processes in Foundation Work

The processes executed in the foundation works are given below.
1. Excavation of earth work in trenches for foundation.
2. Laying out cement concrete.
3. Laying the footing in case of raft or column construction.
4. Laying Anti termite treatment.
5. Laying Brick work up to plinth level.
6. Laying Damp proof course on the walls.
7. Refilling of earth around the walls
8.  Refilling of earth in the building portion up to the required height according to plinth level.



Foundation of building



Foundation work for construction

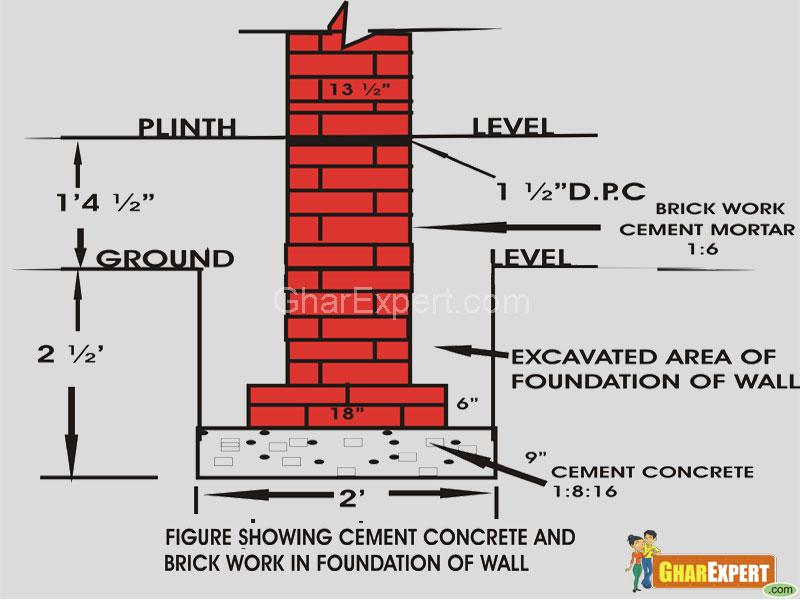

Foundation of building-brick work



Foundation of building-filling of foundation



Precautions while designing 'Foundation'

  1.  A foundation should be designed to transmit combined dead load, imposed load and wind load to the ground.
  2. Net loading intensity of pressure coming on the soil should not exceed the safe bearing capacity.
  3.  Foundation should be designed in such a way that settlement to the ground is limited and uniform under whole of the building to avoid damage to the structure.
  4.  Whole design of the foundation, super structure and characteristics of the ground should be studied to obtain economy in construction work.

Ratio of Cement Concrete and Mortar for Foundation

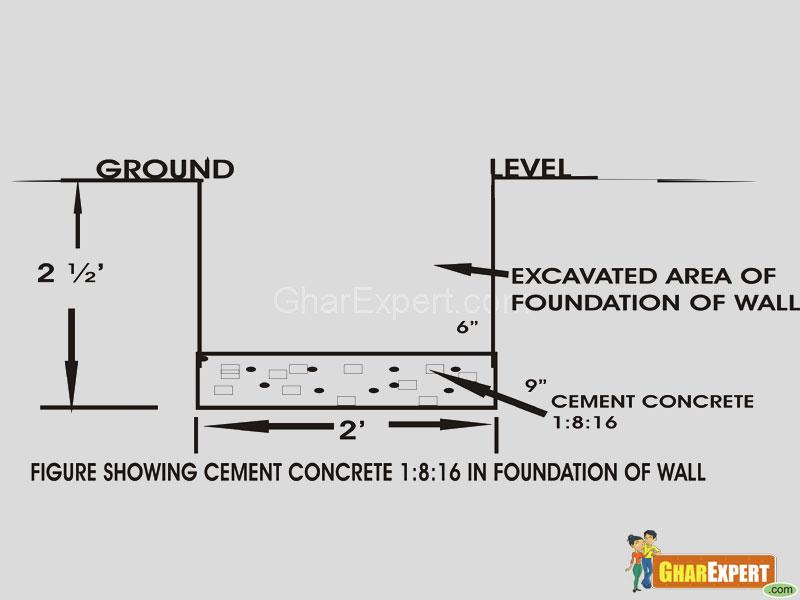

  1.  The cement concrete 1:8:16 is generally used in the foundation of walls in construction work.
  2.  In case of column raft cement concrete 1:4:8 is the best recommended ratio for it in the foundation.
  3.  For brick masonry cement mortar 1:4 to 1:6 is used as loading condition.

 In case of column and raft footings up to plinth level cement concrete 1:2:4 or 1:1.5:3 are used.
Soil having Safe Bearing Capacity

Dry coarse and well graded dense sand have maximum shear resistance and maximum bearing capacity. In general submerged soil and clay have less bearing capacity.

Precautions during Excavation of Foundation Work

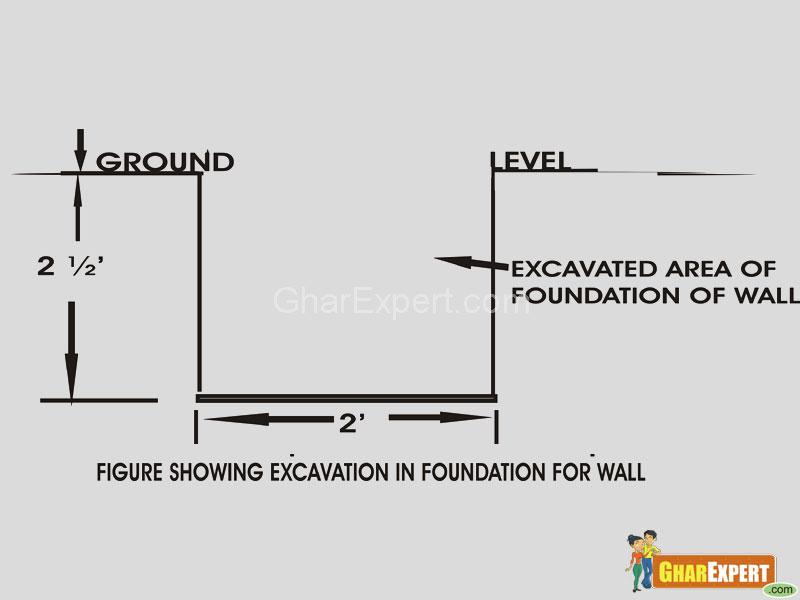

The depth and width of foundation should be according to structural design.

  1.  The depth of the foundation should not be less than 1 meter in case the design is not available.
  2.  The length, width and depth of excavation should be checked with the help of center line and level marked on the burjis.
  3.  The excavated material/ earth should be dumped at a distance of 1 meter from the edges.
  4.  Work should be done on dry soil.
  5.  Arrangement of water pump should be made for pumping out rain water.
  6.  The bottom layer of the foundation should be compacted.
  7.  There should be no soft places in foundation due to roots etc.
  8. Any soft/ defective spots should be dug out and be filled with concrete/ hard material

BR>

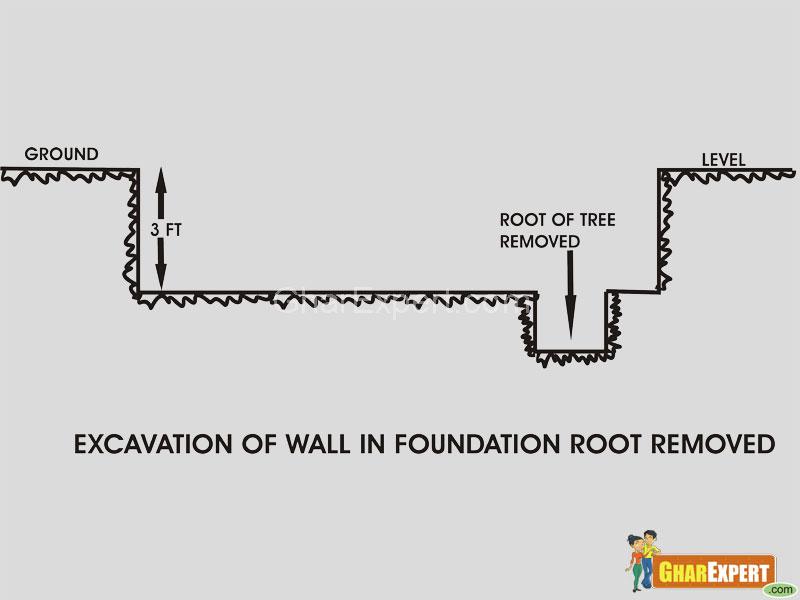

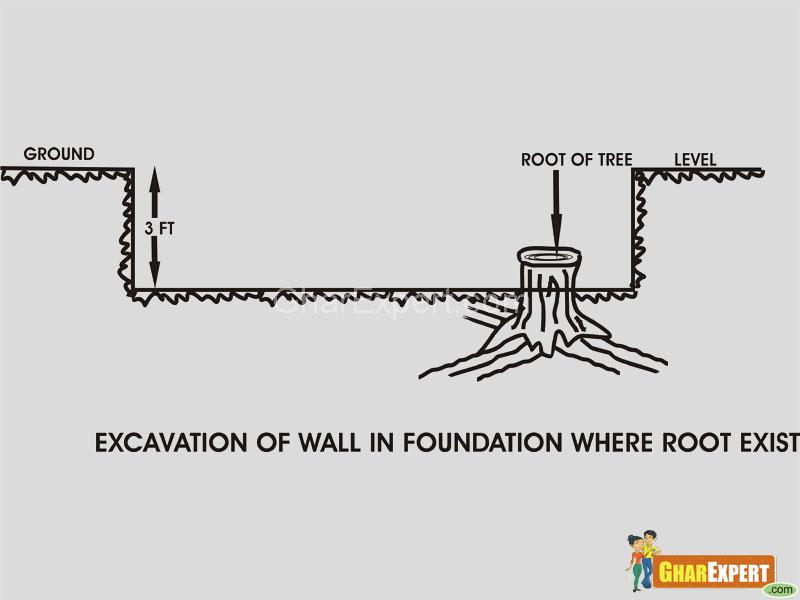

Foundation of building-roots in soil

Foundation of building- remove roots from soil

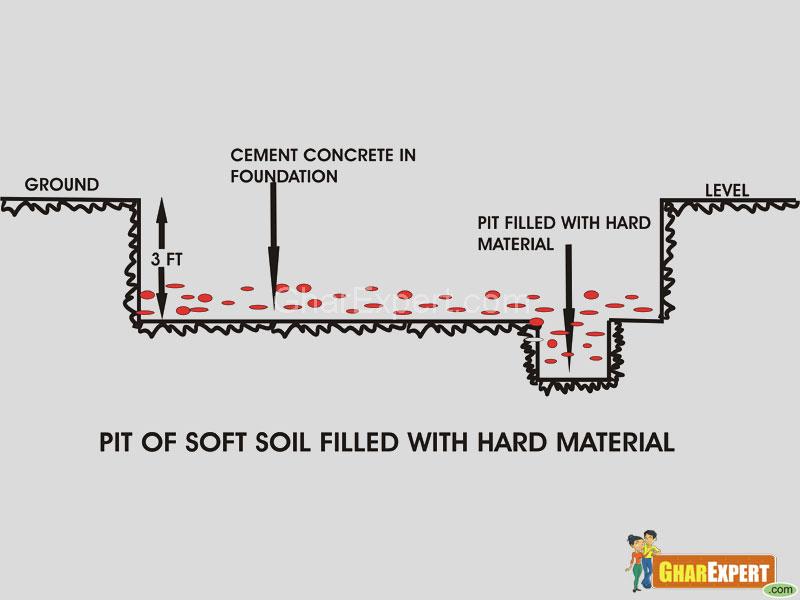

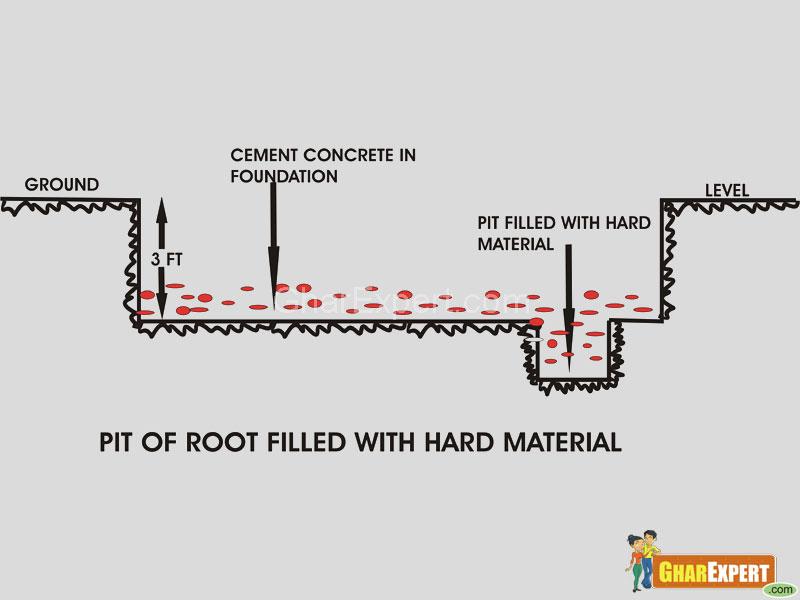

Foundation of building-fill pit with hard soil

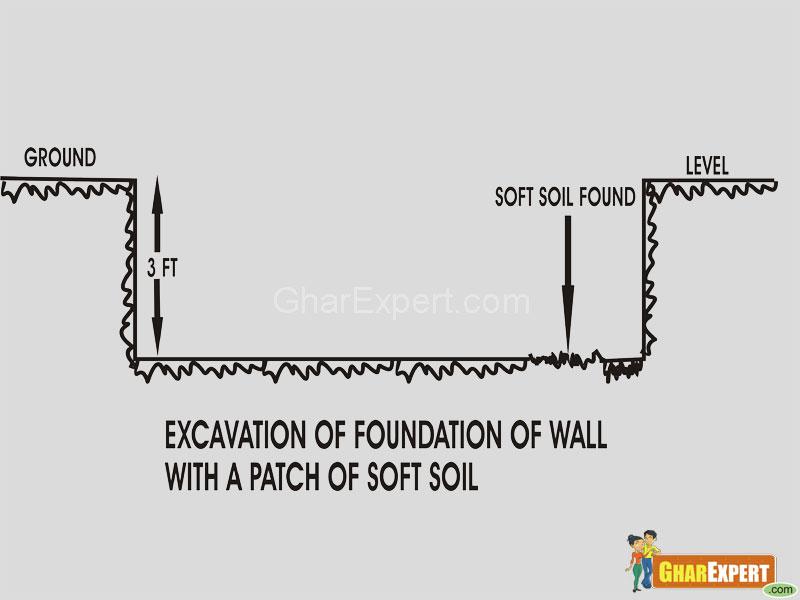

Foundation of building-soft soil

Foundation of building- remove soft soil

Foundation of building-fill soft soil pit


;
Kota stone flooring is a subtle blend of grandeur and luxury giving the interior and exterior a gorgeous look.......
To get maximum ventilation and natural light in your house, make sure the building is properly oriented. Orientation of building saves energy and provides comfortable living as well. This article tells you about various factors and benefits of building orientation.
Preview some of the most impressive pictures of kitchen from GharExpert Gallery.
A solid roof on building is very important for everybody living in the house. The roof should be constructed in a way that assures you great safety. Here are given details about different types of roofing.
Frames of doors and windows are most important parts of your doors and windows. They are available in different size, height, width and shapes. Frames hold locks and hinges and support door and windows to shut and open easily. Here is what you need to know about different doors and windows frames.
Different steel bars are recommended for their relative tensile stresses.Steel bars are major components of construction.Here is what you need to know about steel bars (Sariya).
Brahmasthan is a powerful zone of the house. It should have open space for flow of energy in the house. The positive energy is very useful for living beings of the occupants of the house.
Brick work is an important part of construction work done with the help of bricks and cement mortar. It is done with different quality of bricks with different ratios of cement mortar according to the requirement.
Are you remodeling your bathroom? Bathroom shower doors make your bathroom a style icon. Read the following article that will help you select the bathroom shower door that will exactly suit your bathroom.
Living room or Drawing room should be located in east or north direction. The ideal location of a living room depends on plot facing.
Without knowing perfect mixture of cement and sand you can not achieve your goal.
Manufacturing date, grade and type play vital role in purchasing right cement and there should be no lumps in it.
First Class Bricks must be homogeneous in texture without showing appreciable sign of efflorescence.
A coupler connects the two pipes to each other. If the material and size of the pipe are not the same,it is called a 'reducing coupler'.
Fine sand should consist of natural sand or crushed stone sand. It should be hard, durable, clean and be free from organic matter etc. and should not contain any appreciable amount of clay balls and harmful impurities such as alkalis, salts, coal, decayed vegetation etc.
Bricks provides several choices for quality. Select a type according to your need.
The beading is of plain variety with square edges.
Window Grills are required for the safety of homes. Window glasses should be well covered with grills. Here are various designs of grills which provide safety to window glasses.
Cracks can happen due to foundation movements and settlements of building, thermal movements, chemical reactions, elastic deformations and shrinkage etc. in buildings. They can damage plaster of walls, ceilings and destroy the beauty of the structure also. Let’s know their reasons in detail and get preventive measures.
To minimize the danger of blistering, risk of steam formation etc. Storage temperature of 60 degree C is recommended. This may be increased up to 65 degree C when soft water is used and the storage capacity is limited.


Foundation Work
Foundation Work
foundation
foundation
foundation
foundation
80 ton tower crane foundation dismantling work-9841125344
80 ton tower crane foundation dismantling work-9841125344
80 ton tower crane foundation dismantling work-9841125344
80 ton tower crane foundation dismantling work-9841125344
80 ton Tower crane foundation demolition work,Tuticorin-9841125344
80 ton Tower crane foundation demolition work,Tuticorin-9841125344
80 ton Tower crane foundation demolition work,Tuticorin-9841125344
80 ton Tower crane foundation demolition work,Tuticorin-9841125344
80 ton Tower crane foundation demolition work,Tuticorin-9841125344
80 ton Tower crane foundation demolition work,Tuticorin-9841125344
foundation work
foundation work
basement foundation for story building .
basement foundation for story building .
Load bearing stone foundation
Load bearing stone foundation
Foundation work
Foundation work
foundation
foundation
Foundation
Foundation
Stone in foundation
Stone in foundation
Stone Foundation
Stone Foundation
DPC on Foundation
DPC on Foundation
Brick Work in Foundation
Brick Work in Foundation
foundation
foundation
foundation
foundation

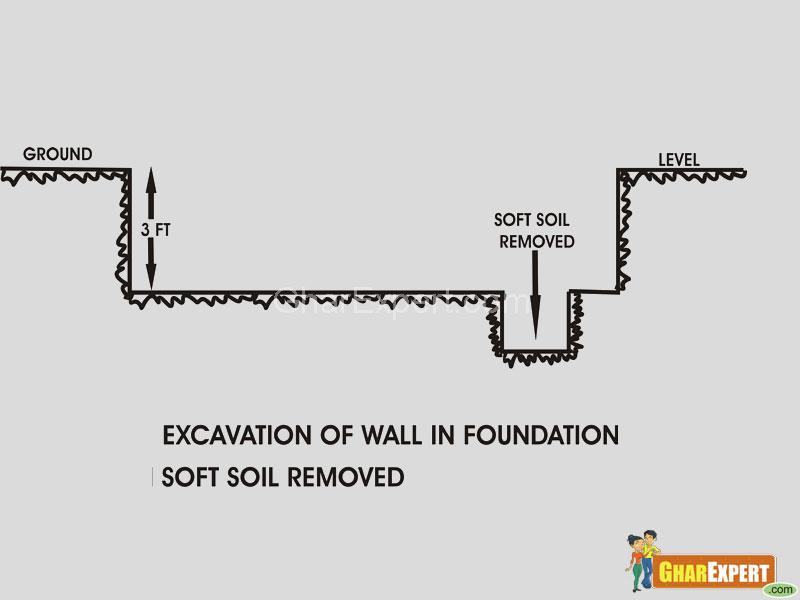

Excavation of Wall in foundation where soft soil removed
