House plan lay out

Mon Oct 13, 2008Total posts : 14
biswajeet behera
biswajeet behera
Join date: Jul 2008
Topic: House plan lay out

I am planning to use my own plan for constructing my dream home. Can any one please see my plan and let me know if any problem in it? Please see the attached picture.

Thanks in advance

Biswajeet!

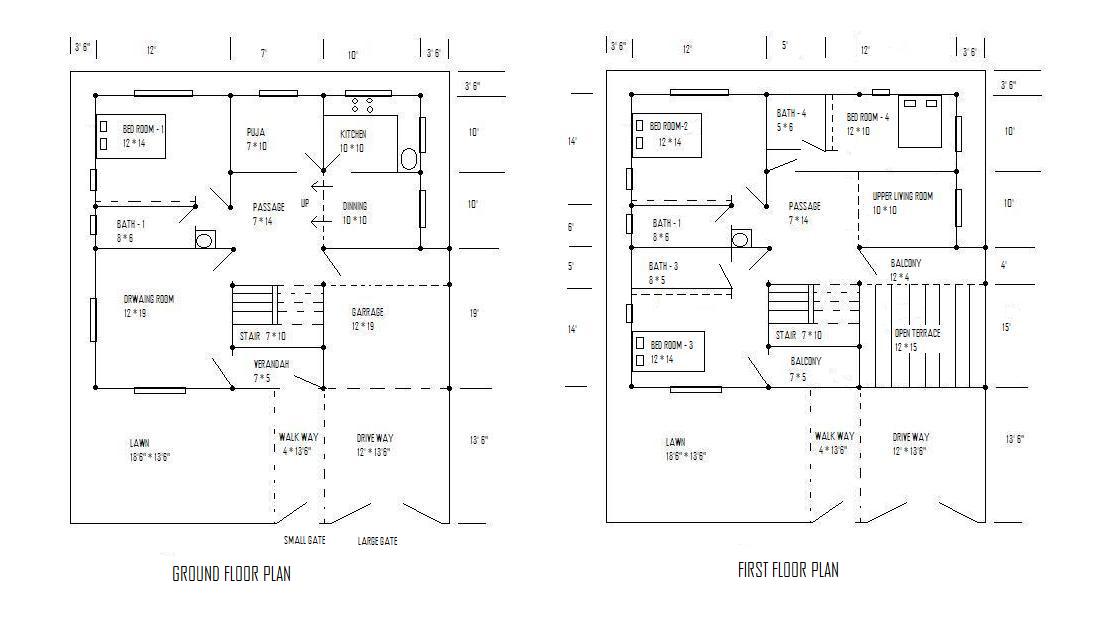

Attachments: Babu home plan - 4 (FINAL).jpg on Mon Oct 13, 2008,&n
Wed Oct 15, 2008Post  #1
Kanhaiya
Kanhaiya

Join date: Oct 2008

My prefrence is, I would stay away from square room dimension. You have three room that are Square, if I remember correctly. In India square room is fine (Positive energy) but in western  thinking they try to avoid square room.

I also prefer open concept. How about if kitchen and dining room are formed into one open room. But women do want privacy. Its all up to you.

Lot of people have difficulty in placing a washroom - toilet in the right location in India. I don't know if your design has problem with it.

Make sure you have proper ventilation in all room.

If one decides to use Vastu, it makes design little more difficult. How about feng shui?








Wed Oct 15, 2008Post  #2
biswajeet behera
biswajeet behera

Join date: Jul 2008
Post subject: thanks a lot Kanhaiya for your valuable comments

thanks a lot Kanhaiya for your valuable comments. The three rooms in my plan you are mentioning are of 12 * 14 sq.ft dimensions. Which i don''t think should be considered as square dimension. One more thing i have doubt, can i make the garrage width as 10 ft? Is 10ft enough for a single car to fit in?


Fri Oct 17, 2008Post  #3
Kanhaiya
Kanhaiya

Join date: Oct 2008
Post subject: Just my opinion.

The three square rooms I am referring to are Kitchen 10 X 10, Dining room 10 X 10 and Upper Living Room 10 X10.  Correct me if I am wrong.



The driveway width in my opinion should be minimum 10 feet. One should be able to open the car door comfortably. With 10 feet driveway, one can open the car door partially. 10 feet driveway is usually the standard. With 12 feet driveway one can open car doors comfortably. I can understand why 12 feet driveway is used, one wants to make the house proportional. Meaning Lawn area shouldn’t be too wide and driveway to be too narrow. Make sure the entrance door is not directly in center of the house.



I am not 100% sold on the idea of how stairs are implemented in drawing. Look at how the traffic is flowing in the house. One has to come back the opposite way to take the stairs. The entrance is completely blocked off hence the beauty of the house.  The good point thou is one can detect who is going up the stairs. If I remember correctly the way one goes up the stairs is in clockwise direction so make sure one doesn’t have it counter clockwise direction.



If one want to put the stairs around that location. I would push it back toward puja room at drawing room wall and make the stair entrance coming in main entrance door. A closet for jacket would be nice around the entrance door.



On the ground floor how about if the Kitchen and Dining room are moved to North-West direction. The bedroom and washroom moved to North – East direction.



I would also make a Laundry room for washing machine and dryer. Maybe take out a washroom. If I remember correctly, you have four washrooms.



Make also a nice outdoor entrance, so people can take off their shoes.



Make washroom windows larger. Not small square. Rectangular would be nice.



These are only suggestion, not to take it seriously.






Fri Oct 17, 2008Post  #4
Kanhaiya
Kanhaiya

Join date: Oct 2008
Post subject: Just my opinion

One more point I forgot to mention. I am not sold on the idea of having bathroom inside the bedroom even thou for couple.

We design one bedroom with washroom inside it. But I don't like it.

We also have those concrete shelf in most room for storage. I have mixed feeling about this as it makes the room smaller.






Sat Oct 25, 2008Post  #5
L. Das
L.  Das

Join date: Jun 2008
Post subject: just my opinion

hi,biswahjeet,

can u plz tell me d north direction of ur plot, i think then i will give my opinion about that. bye


Mon Feb 23, 2009Post  #6
Kanhaiya
Kanhaiya

Join date: Oct 2008
Post subject: Just my opinion!

The reason why I am saying that Kitchen and Dining room should be moved towards Drawing Room (Living Room) is beacause if you decide to break the wall between Drawing Room (Living Room) and Dining Room, it would still look good. Open Concept provided the necessary beams are in place.

Mon Mar 02, 2020Post  #7
S L Gupta (Civil Engg)
S L Gupta (Civil Engg)

Join date: Mar 2008
Dear Sir,
          Thanks for visiting the site.

Wed Mar 11, 2020Post  #8
leelindsey
leelindsey

Join date: Mar 2020

In architecture and building engineering, a floor plan is a drawing to scale, showing a view from above, of the relationships between rooms, spaces, traffic patterns, and other physical features at one level of a structure.

Dimensions are usually drawn between the walls to specify room sizes and wall lengths. Floor plans may also include details of fixtures like sinks, water heaters, furnaces, etc. Floor plans may include notes for construction to specify finishes, construction methods, or symbols for electrical items.

It is also called a plan  which is a measured plane typically projected at the floor height, as opposed to an elevation  which is a measured plane projected from the side of a building, along its height, or a section or cross section where a building is cut along an axis to reveal the interior structure.


Wed Mar 11, 2020Post  #9
S L Gupta (Civil Engg)
S L Gupta (Civil Engg)

Join date: Mar 2008
Dear Sir,
          Thanks for visiting the site.

Fri Jul 03, 2020Post  #10
webworld
webworld

Join date: Jul 2020
Post subject: Assessment of Your SEO

Assessment of Your SEO | seo for website | Website SEO Services | Expert SEO Services in Melbourne | SEO Agency Melbourne | SEO Company In Melbourne | Top SEO Companies in Melbourne | digital marketing agency | Top Digital Marketing Agencies in Australia | Digital Marketing Agencies in Australia | Best Digital Marketing Agency | digital marketing company | Best Web Agencies Website | Expert SEO Services in Melbourne | seo services near me | SEO company in Australia | facebook advertising australia | facebook marketing in australia | digital agency australia | Google Adwords Management Agency | web development services | Website Design & Development Services | Web Design Company Australia | web design company near me | web design agency melbourne | web development company in australia | website design and development company | Conatct SEO Agency Melbourne | Conatct SEO Company In Melbourne |

Looking for best SEO Digital marketing service in australia you can free for contact us and you will get free seo enqury


Tue Oct 06, 2020Post  #11
mahambaloch
mahambaloch

Join date: Apr 2020
I am pretty sure I did the right thing by choosing this site altosplitpdf for my work life. Now this site has become an essential part of my work life. Without its help I cannot get my work done in time.

Sat Oct 17, 2020Post  #12
mahambaloch
mahambaloch

Join date: Apr 2020
Thank you for this fascinating post, I am happy I observed this website on Google. Not just content, in fact, the whole site is fantastic. customwritingservice.com

Sat Oct 17, 2020Post  #13
mahambaloch
mahambaloch

Join date: Apr 2020
You might comment on the order system of the blog. You should chat it's splendid. Your blog audit would swell up your visitors. I was very pleased to find this site.I wanted to thank you for this great read!! Top cannabis online store
