Whether the electrical PVC conduits be placed under or above TMT bars in RCC roof slab?

Sat Jan 28, 2017Total posts : 4
vinu
vinu
Join date: Oct 2015
Topic: Whether the electrical PVC conduits be placed under or above TMT bars in RCC roof slab?

Whether the electrical PVC conduits be placed under or above TMT bars in RCC roof slab?

Sat Jan 28, 2017Post  #1
Navneet Jharia
Navneet Jharia

Join date: Dec 2010
Post subject: PVC conduits be placed under or above TMT bars i...

Hello..! Vinu,The PVC conduits should be placed above TMT bars ...Regards.

Sat Jan 28, 2017Post  #2
Navneet Jharia
Navneet Jharia

Join date: Dec 2010
Post subject: Laying of PVC conduits in roof slab

Laying of PVC conduits in roof slab

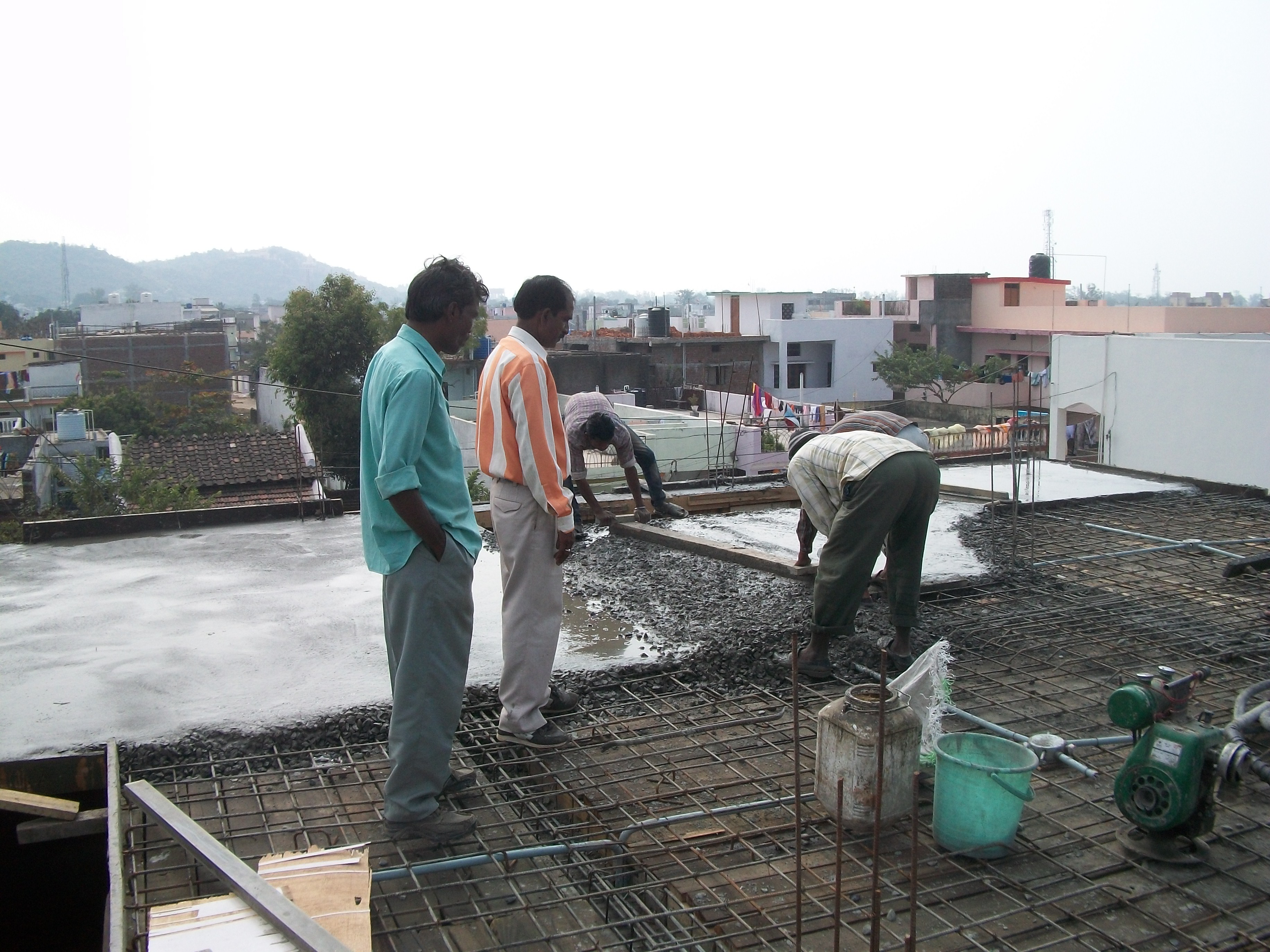

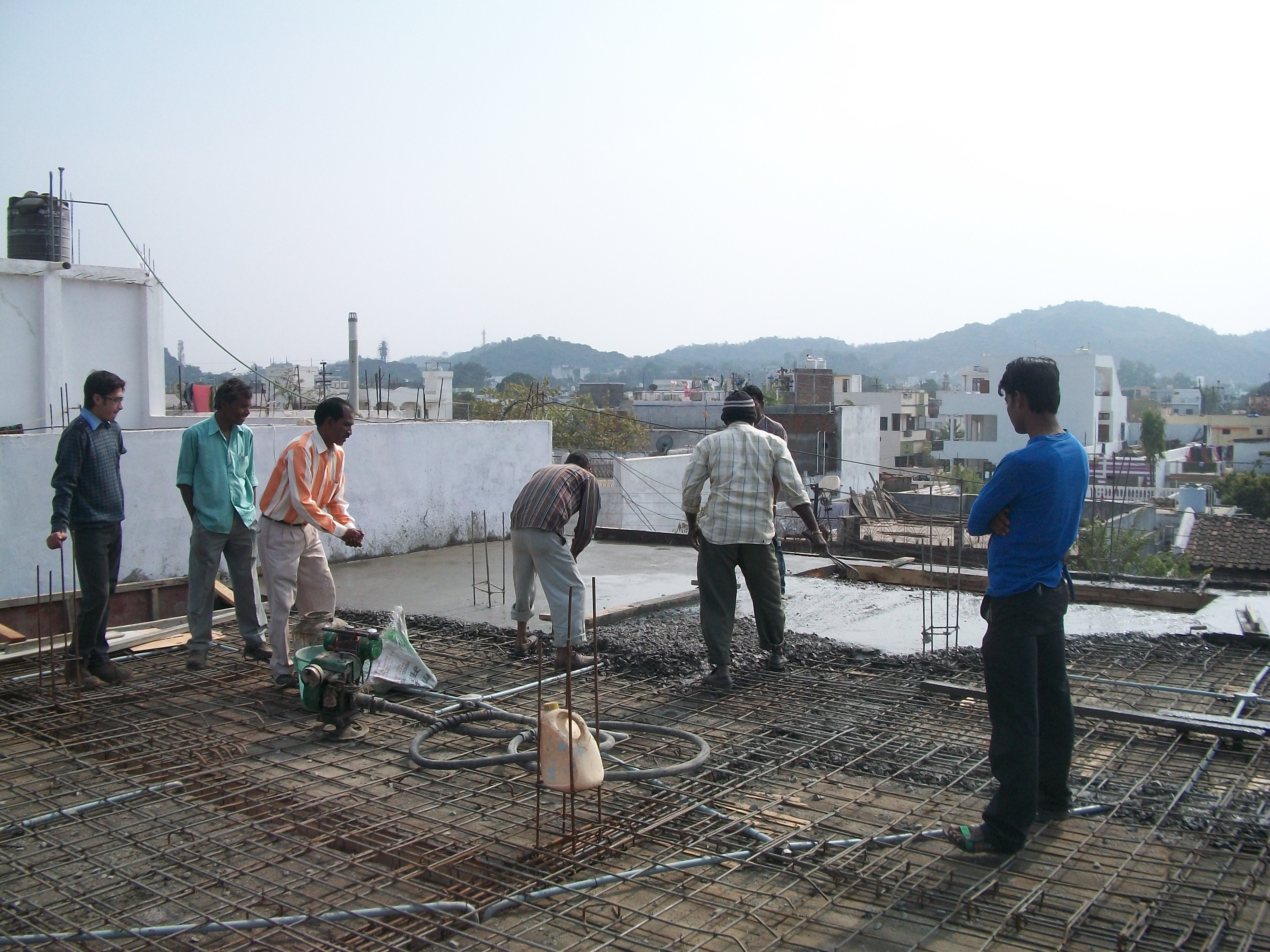

Attachments: 100_4477.JPG Sat Jan 28, 2017,
100_4476.JPG Sat Jan 28, 2017,&n

Mon Jan 30, 2017Post  #3
vinod singh
vinod singh

Join date: Jan 2017
PVC electrical conduits to be put in between top and bottom reinforcement mesh (avoiding conduits in both bottom and top cover )in slabs
Ensure the effective depth of slab is maintained as specified in structural design.

Mon Jan 30, 2017Post  #4
S L Gupta (Civil Engg)
S L Gupta (Civil Engg)

Join date: Mar 2008
Dear Vinu, See and read below article


Cement concrete is strong in compressive strength but weak in tensile strength. To increase tensile strength we use mild steel bars in cement concrete. Steel bars used in cement concrete provide good strength to the structure. A strong building structure is what all need for their homes, offices and steel is the best option used with cement concrete.

1) Overlapping in Steel Bars in Reinforced Cement Concrete

There should be no joints in steel bars used for RCC work. If it is necessary to use small length steel bars, proper overlap should be given.


The joints of bars should be welded in case the diameter of bars is more than 36 mm. Overlapping of bars should not touch each other and they should be kept apart. Where it is not possible, overlapping bars should be bound together at intervals not exceeding twice the diameter of such bars with two strands of steel wires trusted tight. The overlap should be staggered for different bars. The length of overlap should not be less than 50 times the diameter of steel bar.


2) Precautions while Bending, Binding and Placing Steel Bars in RCC Work

  • Steel bars are clear, free from loose mil scales, dust, loose rust and any oily materials.
  • The bars used at site are manufactured from reputed brand and have a full length.
  • Use full length steel bars in beams, slabs etc if not possible, proper overlap should be given in steel bar and overlap should be staggered.
  • Tor, ribbed and twisted steel bars are used as they have more tensile stress. Also they are economical and have more strength in cement concrete.
  • The bars must be in full length according to the design.
  • Proper sizes/ height of crank bars are given in slab and beams etc.
  • Proper support under crank bars of beams and slabs must be given.
  • Steel bars are not disturbed while lying cement concrete.
  • If steel bars are more in number in beams, the bars are placed in two layers by giving spacer between the layers.




3) Checklist/Points before Laying Cement Concrete

  • Form work /shuttering should be checked for line, level and its strength.
  • Steel bars and their placing should be checked.
  • Proper cover to steel bars and adequate numbers of sports/chairs under crank bars must be checked.
  • Proper planks or plates provided for walking over reinforcement are not disturbed during working.
  • Raw materials should be proper and sufficient in quantity.
  • Electrical pipes, fan box etc. should be laid before lying cement concrete.
  • Gap in shuttering plates is sealed properly by jute bags /mortar /rubber etc.
  • Shuttering plates are properly oiled.
  • Curing arrangement must be checked in advance for smooth curing after laying RCC slab.
  • Precautionary arrangements are taken in case of rains etc.
