9 Inch brick wall on 5 inch RCC roof

Sun Oct 16, 2016Total posts : 4
Vishal Thakur
Vishal Thakur
Join date: Oct 2016
Topic: 9 Inch brick wall on 5 inch RCC roof

Hello All,

Constructed new house a year back.. open plot area 30ftx60ft = 1800sq fts (200 sq yards).

Here is my question..

On first floor engineer constructed 9 inch red brick wall on 5 inch RRC slab without laying column on ground floor as shown in diagram. please let me know is there an issue in future because of 9 inch wall load on slab? if yes then what is the solution for it.

our plan to add +2 floors in future.

Appreciate your quick response.

Thank you,
Vishal singh
Attachments: DSCN4905.JPG on Sun Oct 16, 2016,
floor plan G+3.jpg on Sun Oct 16, 2016,&n
Mon Oct 17, 2016Post  #1
Abhishek Garg (Builder & Engineer)
Abhishek Garg (Builder & Engineer)

Join date: Apr 2013
Hello Vishal:
The image that you have posted shows many columns with interconnecting hanging beams. If the 9"thk wall is directly above one of these beams, then there is absolutely no issue in constructing it. Further floors can also be added by building over the existing walls on first floor.

I hope it helps.
-Abhishek Garg

Mon Oct 17, 2016Post  #2
S L Gupta (Civil Engg)
S L Gupta (Civil Engg)

Join date: Mar 2008
Dear vishal
         There is any error in floor plan G +3 that is not opened for giving reference.

Mon Oct 17, 2016Post  #3
Vishal Thakur
Vishal Thakur

Join date: Oct 2016
Thank you very much Abhishek and SL Gupta Ji to respond my query so quickly..

I understand if 9 inch wall construed directly above the beams there will be no issues.
but in my case 9 inch wall constructed on RCC 5-6 inch slab (centre) without laying beam. Please review the floor plan attached.

Regards,
Vishal



Attachments: floor plan G+3.bmp Mon Oct 17, 2016,&n

Mon Oct 17, 2016Post  #4
Vishal Thakur
Vishal Thakur

Join date: Oct 2016

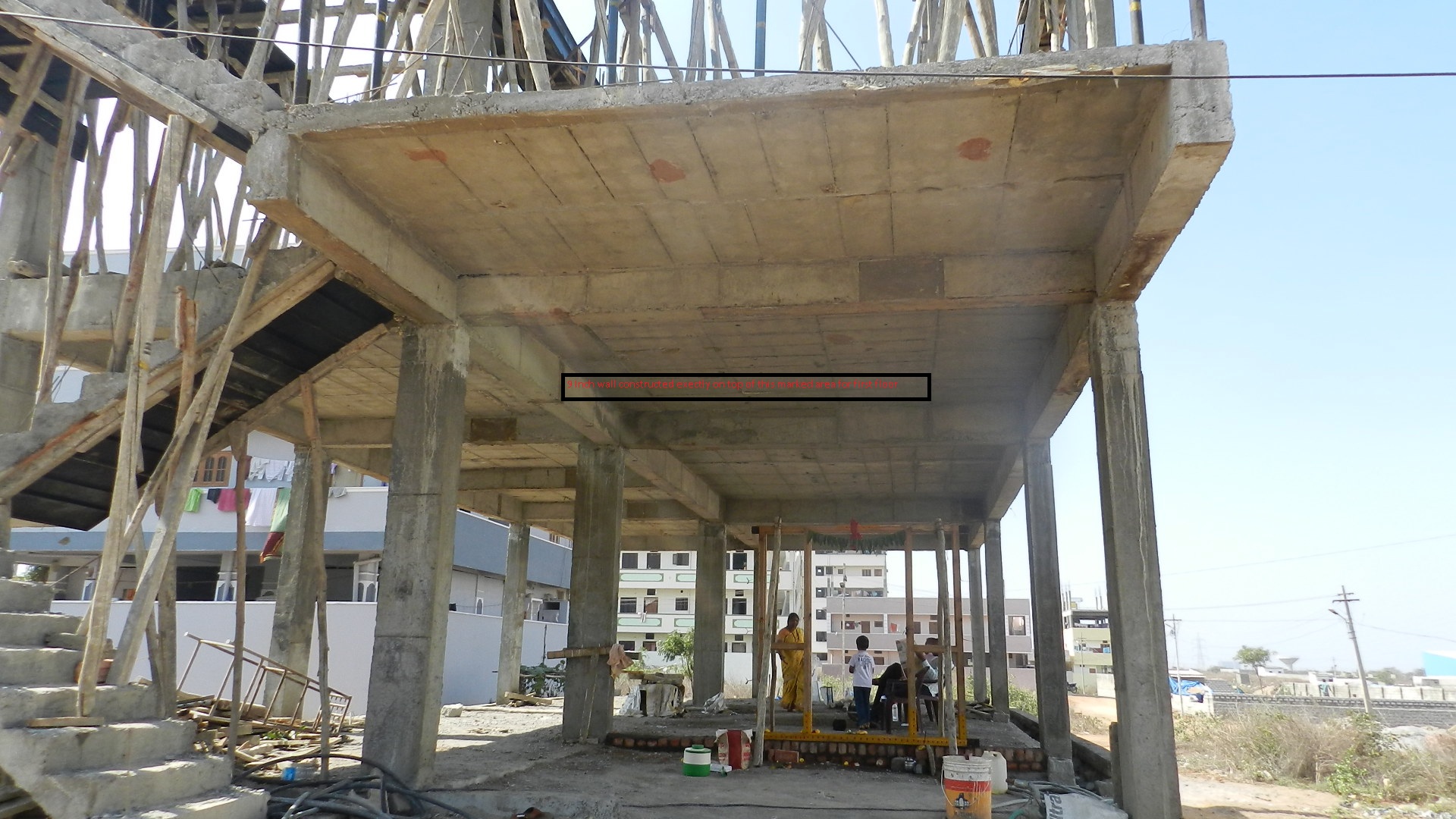

There is an error with Floor plan not able to open attachment. So, i added photograph marked the area on which 9 inch wall build on top of slab without beam.

All center pillars has 20 mm TMT - 8 rods used. Corner/sides pillars has 16 mm - 8 rods used and all columns has 20 and 16 mm rods used respectively

please suggest.

Thanks again
Vishal Thakur
Attachments: DSCN4905.jpg Mon Oct 17, 2016,&n
