Absence of Plinth Beam

Sat Oct 29, 2016Total posts : 34
Pritam Thakur
Pritam Thakur
Join date: Oct 2016
Topic: Absence of Plinth Beam

Hi,

I am constructing a G+VI residential building. My engineer has provided the structural drawing which has a raised plinth (around 1m above ground level) and Deep Pile Foundation. There is only one beam, that is above the Pile-Caps. Above those tie-beams, the columns goes upto a height of around 4.5 metres till the beams of the ground floor floor roof. The height of the ground floor is 3 m, and 1.5 m below is filled with silver sand from top of Pile-Caps. There is no beam at the plinth level.  Will there be any issue with the absence of plinth beams in this case?

Also, how high can the columns be given the dimensions vary from 300x500mm to 300x600mm.

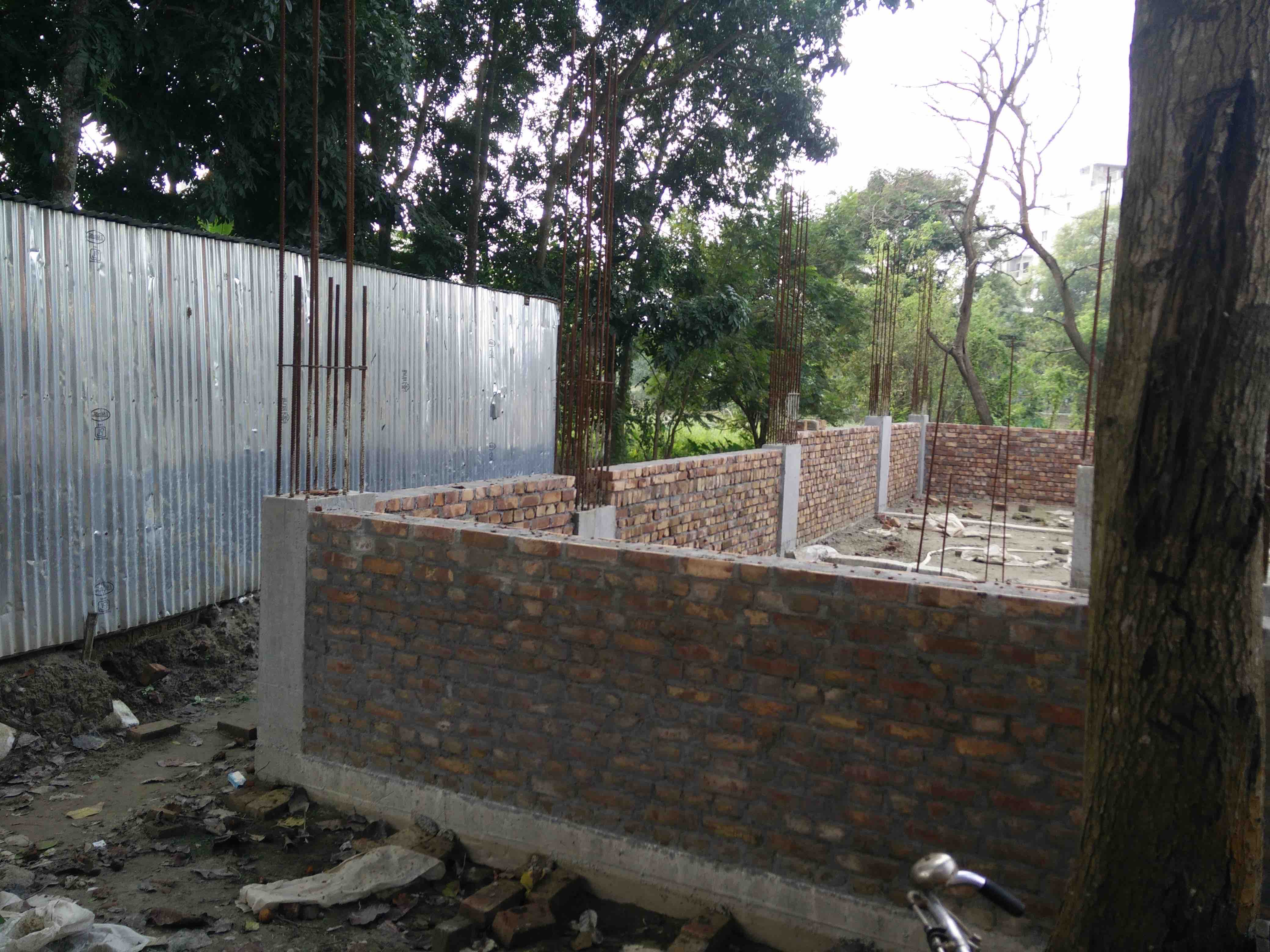

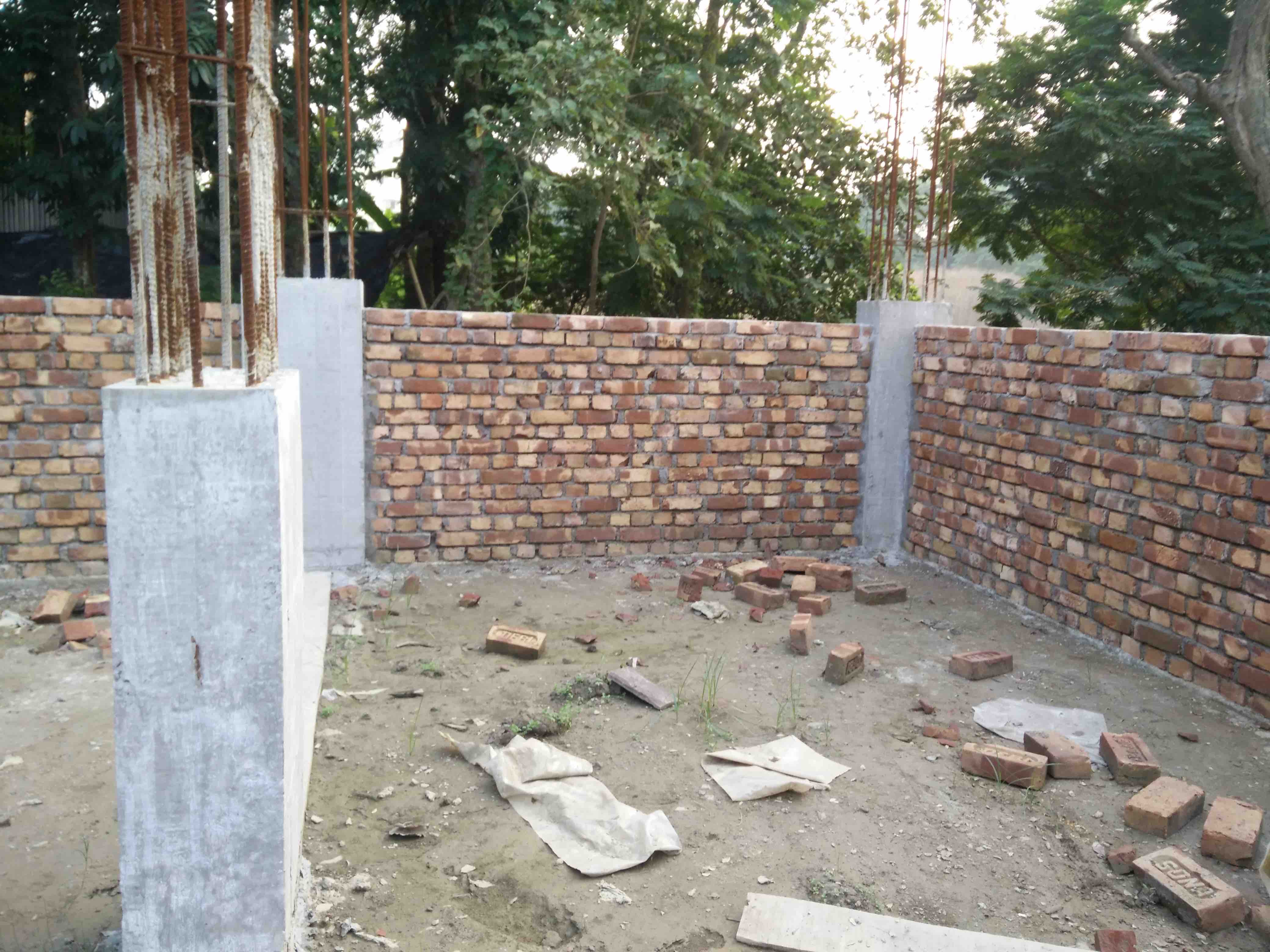

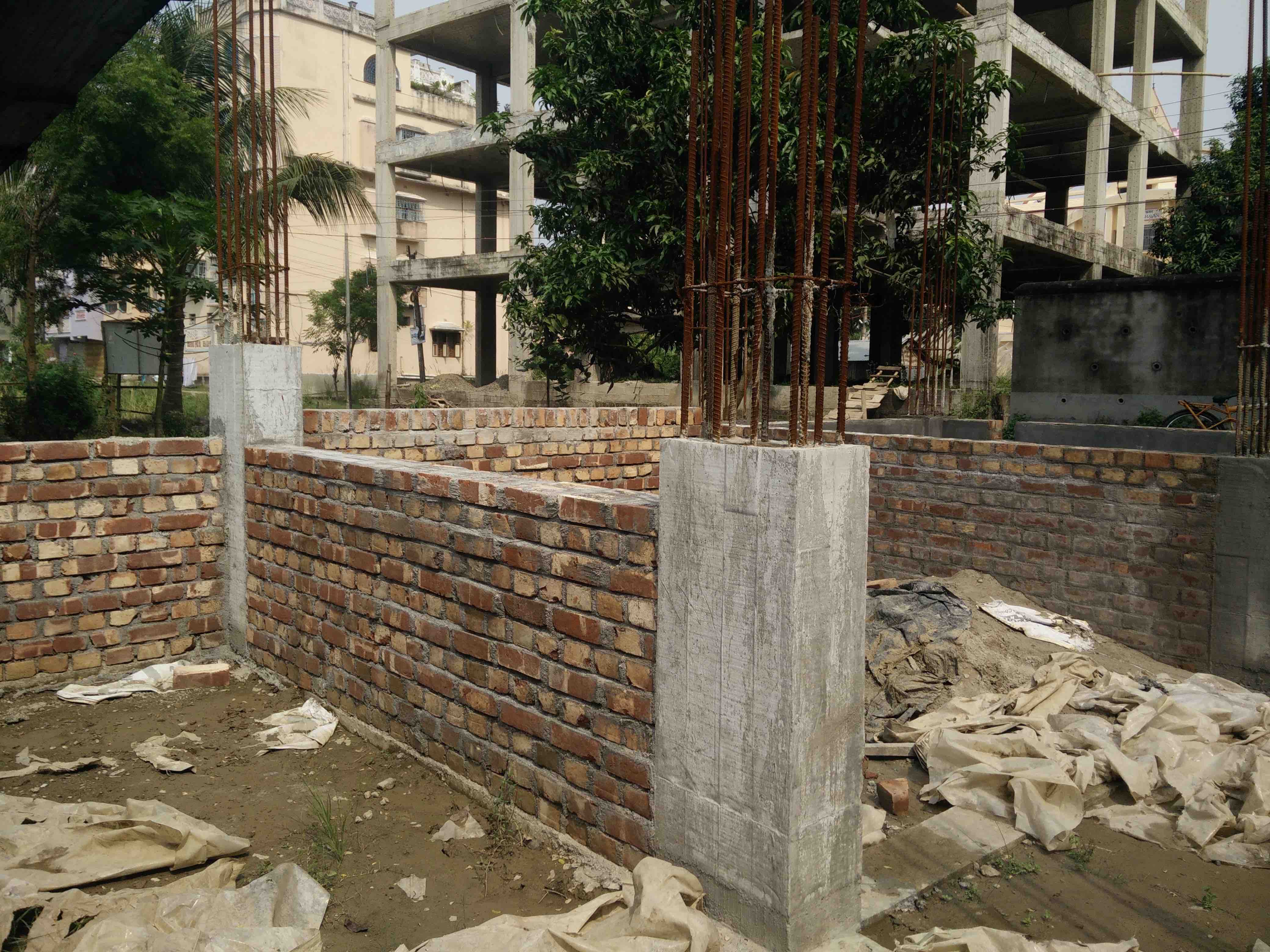

Attachments: pic1.jpg on Sat Oct 29, 2016,
pic2.jpeg on Sat Oct 29, 2016,
pic3.jpeg on Sat Oct 29, 2016,&n
Go to page: 1 2 Next   >>
Sat Oct 29, 2016Post  #1
Er.S.K.Jain
Er.S.K.Jain

Join date: May 2015
If the column is design for 4.5 meter height it is safe. Any height of column is possible to design as long column. normally we will take up to 12 to 15 times of column width but it is not limited to it.
Plinth beam required if you need to place any wall from plinth other wise o.k.
But as per earthquake resistance it is required to design long column very carefully.
its better to provide a lintel on plinth level as per earthquake resistance guide line.

Sat Oct 29, 2016Post  #2
Pritam Thakur
Pritam Thakur

Join date: Oct 2016
Hello Sir,

Thank you very much for the answer.

In this case the engineer has started the wall from the beams at NGL, and gone upto the first floor roof. So the height of the wall is around 4.5m, 0.5m being below ground, 1m at Plinth, and 3m height of the ground floor.

Fri Mar 29, 2019Post  #3
Jackson Manton
Jackson Manton

Join date: Mar 2019
During the construction we have to check and recheck for the all beams that will compulsory to use and then need to add the steals from the upper side of the slabs and columns too. If the beam name of the plinth one will be absence then other beams will take it care as on the australian essay chapter for the construction we have read and learnt about the rules.

Sun Mar 31, 2019Post  #4
S L Gupta (Civil Engg)
S L Gupta (Civil Engg)

Join date: Mar 2008
Dear Sir,
         Thanks for visiting the site.

Tue Apr 02, 2019Post  #5
hendry jullius
hendry jullius

Join date: Feb 2019
The absence of Plinth beams what does it really meant it. Its something related to construction based site. There is a lot of criteria before doing construction works. We all consult a civil engineer  apartments for sale in kochi before doing the construction work. He gives the best ideas and we accept this.

Wed Apr 03, 2019Post  #6
S L Gupta (Civil Engg)
S L Gupta (Civil Engg)

Join date: Mar 2008
Dear Sir,
         Thanks for visiting the site

Wed Jul 31, 2019Post  #7
S L Gupta (Civil Engg)
S L Gupta (Civil Engg)

Join date: Mar 2008
Dear Sir,
          Thanks for visiting the site.

Wed Jul 31, 2019Post  #8
south-craft
south-craft

Join date: Jul 2019
Post subject: south-craft

I read your blog frequently and I just thought I’d say keep up the amazing work! https://www.south-craft.com

Wed Jul 31, 2019Post  #9
we-love-home
we-love-home

Join date: Jul 2019
Post subject: we-love-home

That is the excellent mindset, nonetheless is just not help to make every sence whatsoever preaching about that mather. Virtually any method many thanks in addition to i had endeavor to promote your own article in to delicius nevertheless it is apparently a dilemma using your information sites can you please recheck the idea. thanks once more. https://www.we-love-home.com

Thu Aug 01, 2019Post  #10
S L Gupta (Civil Engg)
S L Gupta (Civil Engg)

Join date: Mar 2008
Dear Sir,
         Thanks for visiting the site.

Thu Aug 01, 2019Post  #11
paydayloanslowdown
paydayloanslowdown

Join date: Aug 2019
Post subject: paydayloanslowdown

Admiring the time and effort you put into your blog and the detailed information you offer! https://paydayloanslowdown.com

Fri Aug 02, 2019Post  #12
S L Gupta (Civil Engg)
S L Gupta (Civil Engg)

Join date: Mar 2008
Dear Sir,
         Thanks for visiting the site.

Tue Aug 06, 2019Post  #13
Zera Thomaz
Zera Thomaz

Join date: Jul 2019
Post subject: REPLY

Plinth beams are usually needed when you have to support any wall from the plinth. Otherwise, Hostsailor the absence of the plinth beam does not affect the construction. But most of the buildings use the plinth beam as an earthquake resistance to withstand earthquakes.


Wed Aug 07, 2019Post  #14
S L Gupta (Civil Engg)
S L Gupta (Civil Engg)

Join date: Mar 2008
Dear Sir,
         Thanks for visiting the site.

Wed Aug 07, 2019Post  #15
bestsoccertop
bestsoccertop

Join date: Aug 2019
Post subject: bestsoccertop

Thank you for taking the time to publish this information very useful https://www.bestsoccertop.com

Thu Aug 08, 2019Post  #16
S L Gupta (Civil Engg)
S L Gupta (Civil Engg)

Join date: Mar 2008
Dear Sir,
         Thanks for visiting the site

Sun Aug 11, 2019Post  #17
Emily Laster
Emily Laster

Join date: Aug 2019
I read your blog frequently and I just thought I’d say keep up the amazing work!

Sun Aug 11, 2019Post  #18
Emily Laster
Emily Laster

Join date: Aug 2019
Post subject: thanks

he absence of Plinth beams what does it really meant it. Its something related to construction based site. There is a lot of criteria before doing construction works. We all consult a civil engineer
https://www.causesandtreatment.com

Mon Aug 12, 2019Post  #19
S L Gupta (Civil Engg)
S L Gupta (Civil Engg)

Join date: Mar 2008
Dear Sir,
         Thanks for visiting the site.

Tue Aug 27, 2019Post  #20
privatekite
privatekite

Join date: Aug 2019
Post subject: privatekite

Your work is very good and I appreciate you and hopping for some more informative posts. Thank you for sharing great information to us. https://www.privatekite.com
